33 Important DeWalt 20V Max XR Hammer Drill Kit Drill Specs
1020.2
in-lbs
Peak torque
20
V
Battery
2000
RPM
HIGH (no-load)
Our Score: 92%
Are You Sure It Is Your Best Choice? Check These:
Top Cordless Hammer Drills
Top 20v Cordless Drills
Top High-torque Cordless Drills
Top Cordless Drills
| Performance | |
|---|---|
| Speed settings | 3 |
| Motor type | Brushless |
| Drill-Specific Specs | |
| Peak Torque | 1020.2 In-lbs (in drill mode), 918.4 (in hammerdrill mode) |
| Unit Watts Out (UWO) | 820 |
| Chuck Type | Metal ratcheting |
| High no-load RPM | 2000 (in drill mode), 2250 (in hammerdrill mode) |
| High BPM | 38250 |
| Low no-load RPM | 450 (in drill mode), 500 (in hammerdrill mode) |
| Clutch settings | 11 |
| Battery Specs | |
| Battery | Lithium Ion (also known as Max XR Premium Battery Pack) |
| Battery cells | 2 |
| Battery Power | 5000 |
| Battery voltage | 20 |
| Physical Specs | |
| Weight lbs with package | 11.05 |
| Other Specs & Features | |
| Optional Accessories | Replacement batteries (with product code DCB205) |
| Model Variants | DCD996B (variant includes bare tool only) |

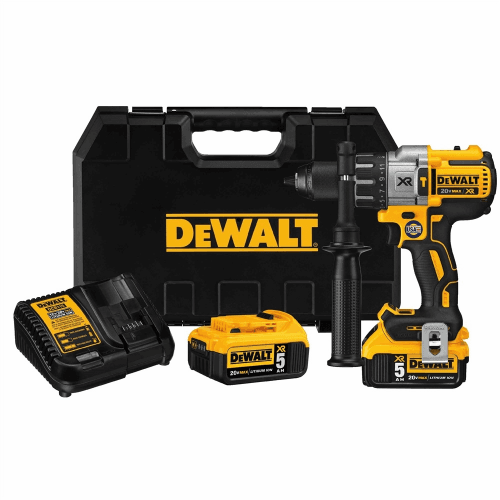

| Included Accessories | Kit box, Charger, 360-degre side handle, Belt hook, 2 Batteries |
| Available colors | Yellow with black accents |
| Warranty | 3 years (with 90-day money-back warranty and 1-year free service) |
| Special | 3-mode LED lighting with spotlight mode, Variable speed trigger, Metal transmission system |
| Manufacture product ID | DCD996P2 |
| UPC code | 885911483063 |
| Indicator lights | Fuel gauge (found on battery pack) |
| Indicator lights | Fuel gauge (found on battery pack) |
| Warranty | 3 years (with 90-day money-back warranty and 1-year free service) |
| Claimed qualities | DeWalt claims that the brushless motor has 75% more runtime compared to 18v NiCad brushed motors and that the XR Li-Ion battery packs have a 60% greater capacity compared to DeWalt's Standard 20V MAX battery packs. |
| Special | 3-mode LED lighting with spotlight mode, Variable speed trigger, Metal transmission system |
| UPC code | 885911483063 |
| Model Variants | DCD996B (variant includes bare tool only) |
| Main category | Cordless hammer drill |
| Release year | 2016 |
| Release month | 04 |
| Release day | 04 |
Description:
The DeWALT DCD996P2 has a brushless motor that can reach a peak torque of 1029 in-lbs and 2000RPM. Powered by DeWat's 20v Max XR premium batteries, the cordless drill has three variable speed settings, but it only has 11 clutch settings.
Also known as: Dewalt DCD996P2.
